Product Overview

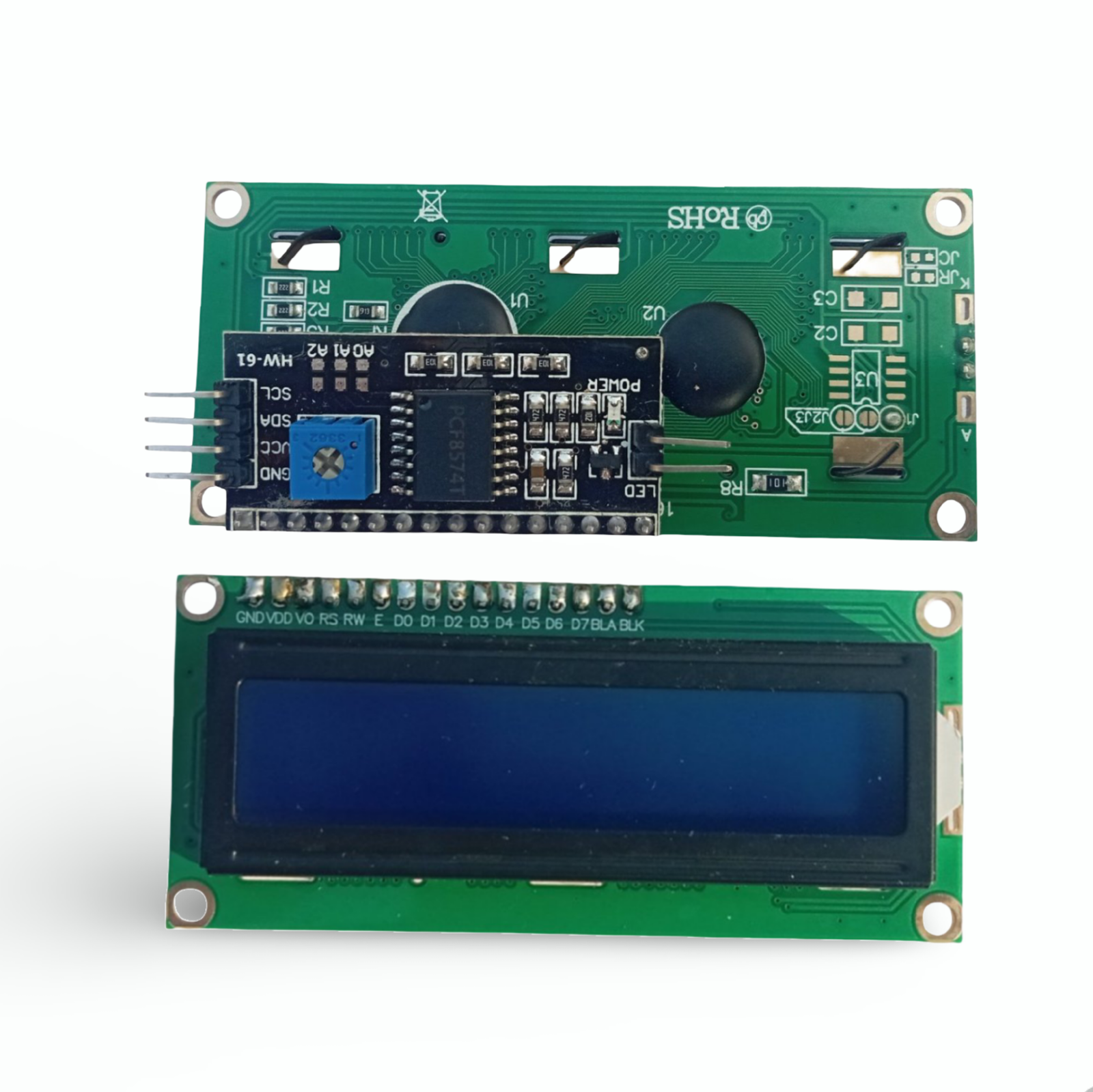

Simplify your Arduino and IoT projects with this **Blue 1602 LCD Display Module**, featuring a pre-soldered **I2C Interface Adapter**. Unlike standard LCDs that require messy wiring and use up to 6 digital pins, this module connects using just **two wires (SDA and SCL)**. Powered by the **PCF8574T chip**, it provides a crisp 16-character by 2-line display with a vivid blue backlight, making it the perfect choice for displaying sensor data, text, and menus.
Key Features

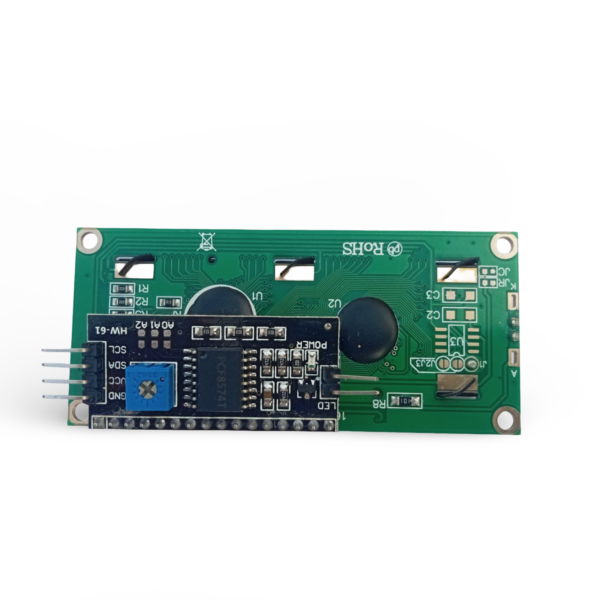

- I2C Serial Interface: Comes with a pre-installed backpack module that communicates via I2C, drastically reducing wiring complexity to just 4 pins (VCC, GND, SDA, SCL).
- Contrast Adjustment: Features a built-in **blue potentiometer** on the back, allowing you to easily fine-tune the text clarity with a screwdriver.
- Backlight Control: Includes a jumper on the I2C board to enable or disable the blue backlight via software or hardware.
- Clear Visibility: High-contrast white text on a deep blue background ensures readability in various lighting conditions.
- Wide Compatibility: Works seamlessly with standard LiquidCrystal_I2C libraries for Arduino, ESP32, Raspberry Pi, and STM32.
Technical Specifications
- Display Format: 16 Characters x 2 Rows
- Interface: I2C / TWI (Pins: GND, VCC, SDA, SCL)
- I2C Chip: PCF8574T
- Operating Voltage: 5V DC
- Backlight Color: Blue
- I2C Address: Commonly 0x27 or 0x3F (Adjustable via solder pads A0/A1/A2)
Common Applications
- Digital Clocks and Timers
- Weather Station Displays (Temp/Humidity)
- System Status Monitors
- User Interface for DIY Electronics
General Product Overview
This **1602 LCD Display Module** comes pre-equipped with an **I2C Serial Interface Adapter**, making it the easiest way to add a display to your electronics projects. Unlike standard LCDs that require a tangle of 12+ wires, this improved module uses the **PCF8574T chip** to communicate using only **two data wires (SDA and SCL)**. It features a sharp 16-character by 2-line display with a classic blue backlight, perfect for showing sensor readings.
Frequently Asked Questions (Detailed Features)
Q: Why choose this I2C version?
A: Standard LCDs use 6+ digital pins. This module has a built-in **I2C backpack** that reduces the connection to just 4 pins (VCC, GND, SDA, SCL), saving your Arduino pins for other sensors.
Q: How do I fix faint text or white blocks?
A: On the back of the module, there is a **blue potentiometer**. Use a screwdriver to rotate this dial to adjust the contrast until the characters are sharp.
Q: Can I turn off the backlight?
A: Yes, there is a **removable jumper cap** on the side of the interface board. Removing it disables the backlight to save power.
Q: Can I change the I2C Address?
A: Yes. The board features address pads labeled **A0, A1, and A2**. By bridging these solder pads, you can modify the address (default 0x27 or 0x3F) to run multiple LCDs on one board.
