Description
Product Overview

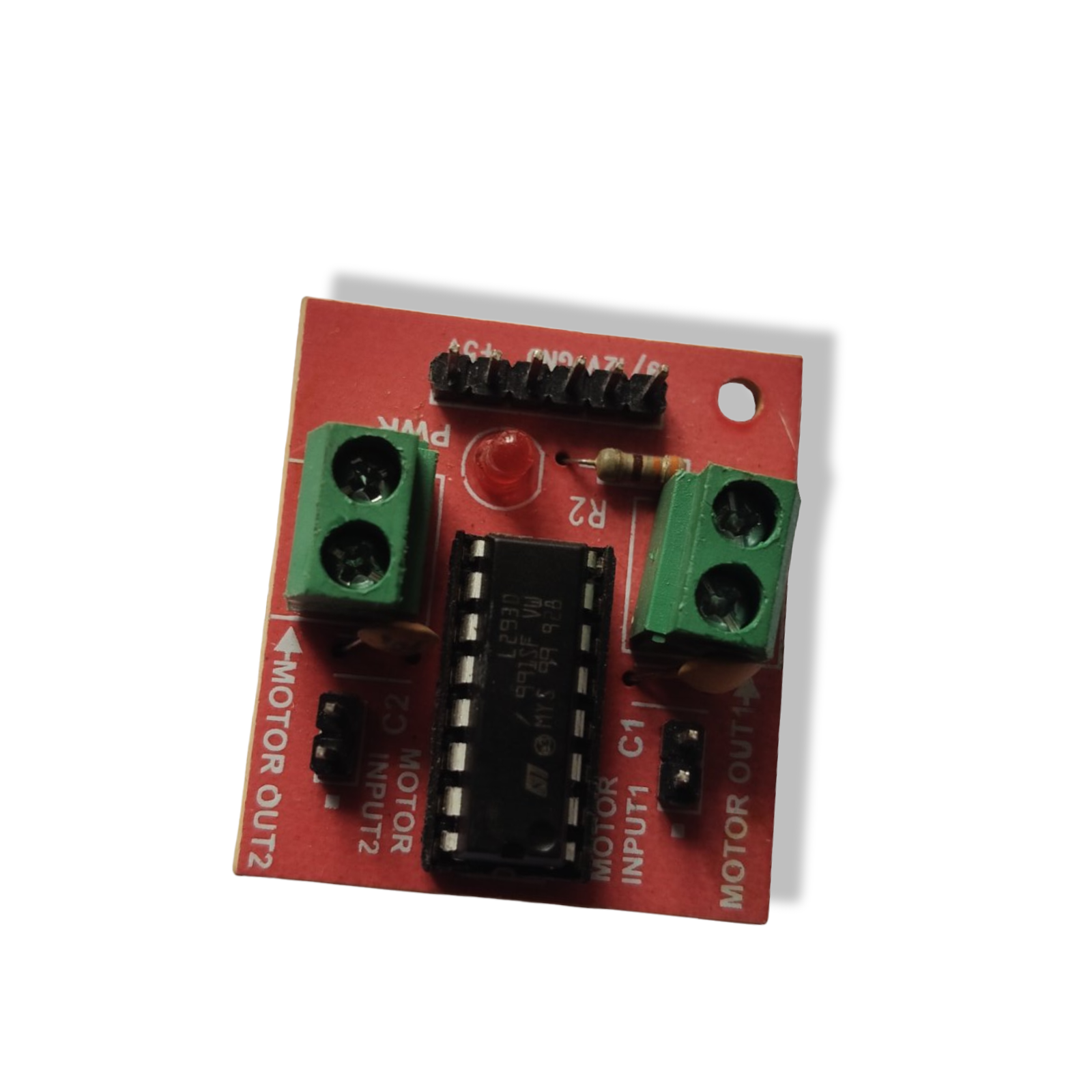

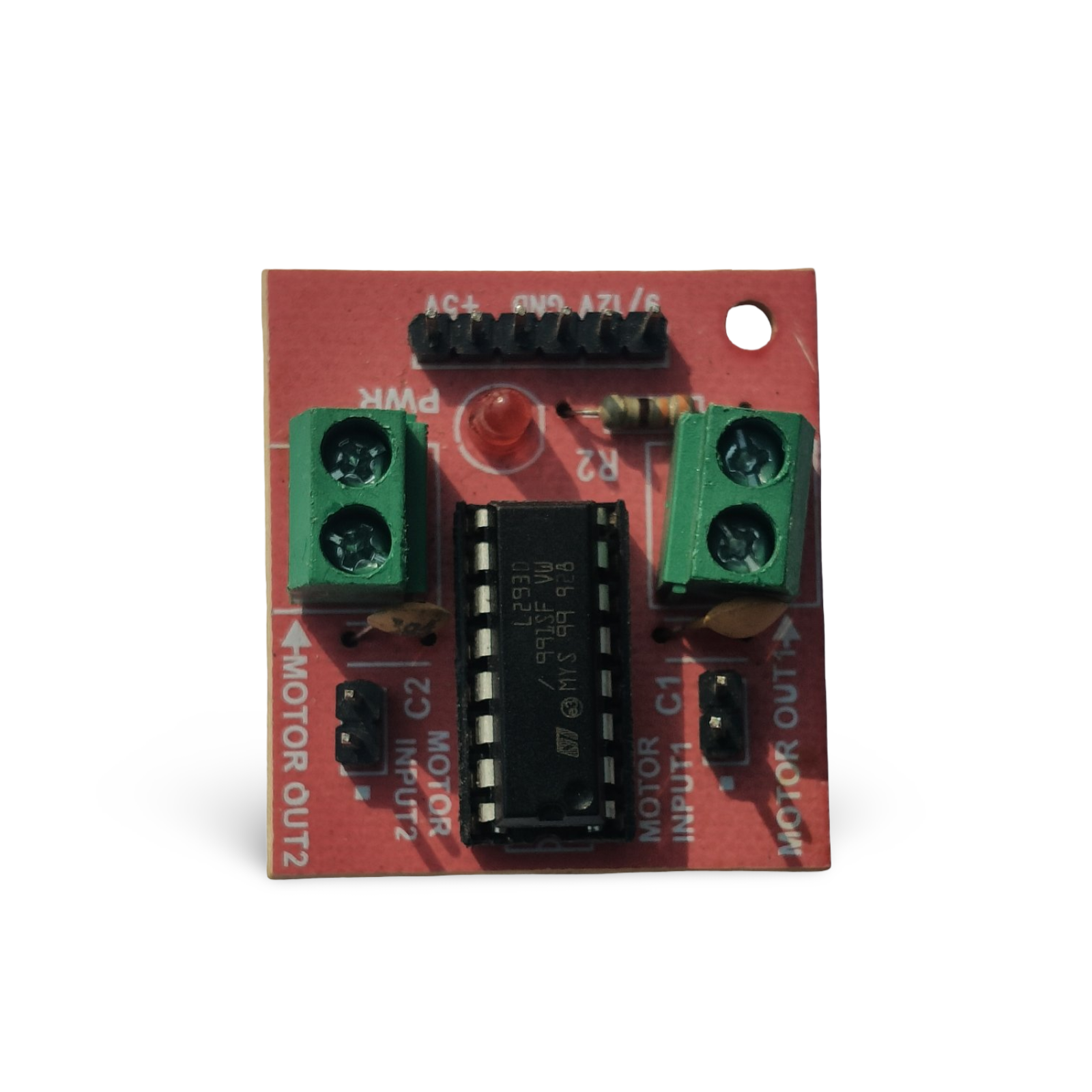

This compact L293D Motor Driver Module is the perfect solution for controlling small DC motors in your robotics projects. Built around the industry-standard STMicroelectronics L293D chip, this module allows you to drive two DC motors simultaneously with independent direction and speed control. It is an essential component for building line-follower robots, obstacle-avoiding cars, and other automation prototypes.
Key Features
- Dual Motor Control: Capable of driving 2 DC motors or 1 Stepper motor independently.
- H-Bridge Integrated: Allows for bidirectional control, meaning you can spin motors forward and backward.
- Easy Connections: Features robust green screw terminals for secure motor wire connections.
- Standard Interface: Clearly labeled header pins for connecting to microcontrollers like Arduino, ESP8266, or Raspberry Pi.
- Visual Indication: Includes an onboard Red LED to indicate power status.
- Compact Design: Small form factor making it easy to fit into tight chassis spaces.
Technical Specifications
- Driver Chip: L293D (Dual H-Bridge)
- Motor Supply Voltage: 9V to 12V DC (as labeled on board)
- Logic Voltage: 5V
- Output Current: Up to 600mA per channel (1.2A peak)
- Connectivity:
- Inputs: Logic pins for Motor 1 & Motor 2 (Input 1, 2, 3, 4)
- Outputs: Motor Out 1, Motor Out 2 (Screw Terminals)
Common Applications
- DIY RC Cars
- Line Following Robots
- Robotic Arms
- Smart Home Automation Blinds
