Description
Soil Moisture Sensor Module with Comparator Board
The Soil Moisture Sensor Module is an easy-to-use and reliable solution for measuring
soil moisture levels in gardening, agriculture, and DIY electronics projects.
This module consists of a soil probe and a signal processing comparator board,
allowing both analog and digital output for flexible integration with microcontrollers.
Volt11 is a reseller and distributor of this product and does not manufacture the module.
The product is sourced from trusted suppliers and tested for compatibility with common development boards.
🌱 How It Works

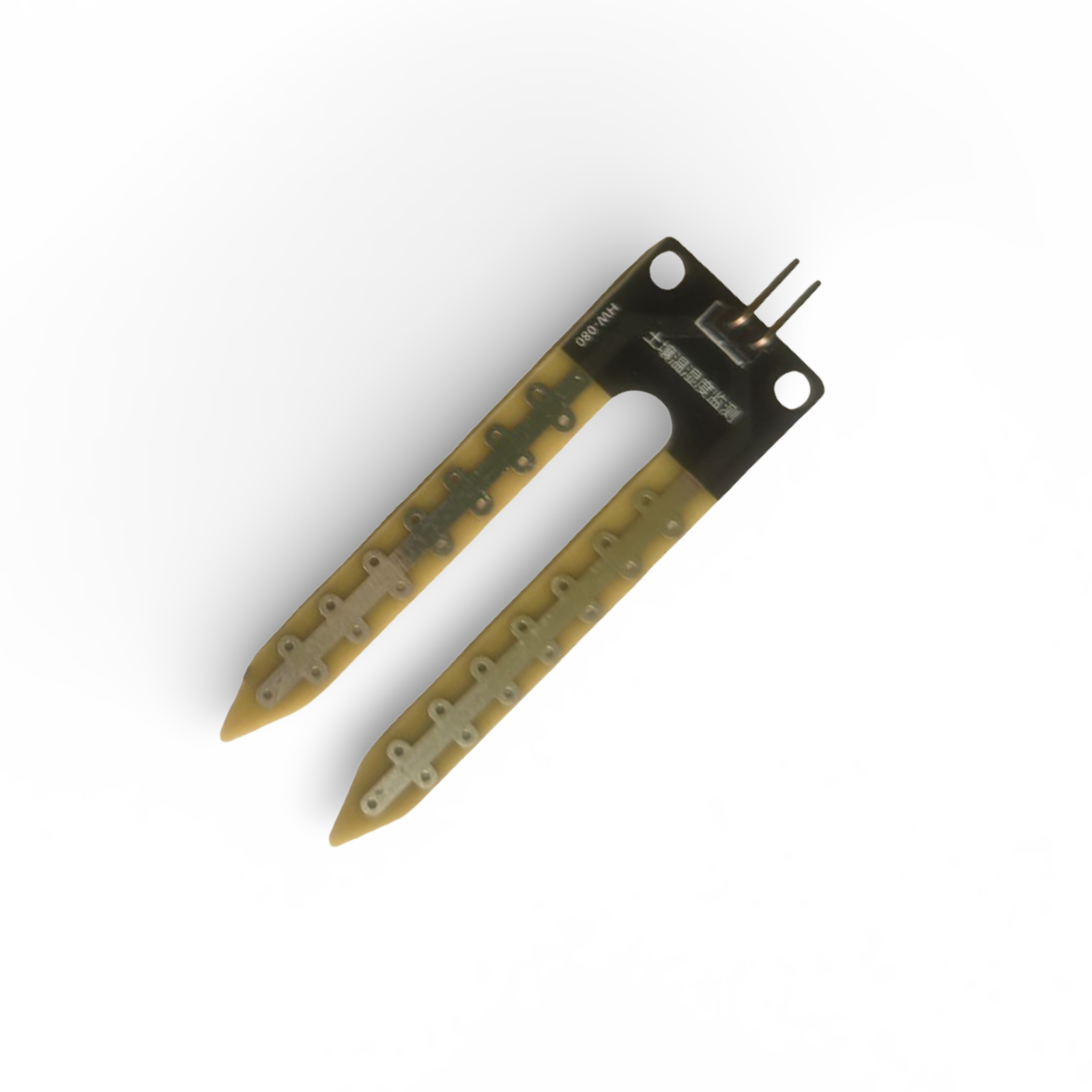

The soil probe measures the electrical resistance between its two conductive traces.
As soil moisture increases, resistance decreases. The comparator board processes this signal and
provides:
- Analog Output (AO) – proportional to soil moisture level
- Digital Output (DO) – adjustable threshold using onboard potentiometer
This allows precise moisture monitoring or simple wet/dry detection for automation systems.
⚙️ Key Features
- Measures soil moisture accurately
- Analog and digital output support
- Adjustable sensitivity via onboard potentiometer
- Compatible with Arduino, ESP32, ESP8266, Raspberry Pi
- Low power consumption
- Compact and lightweight design
🔧 Technical Specifications
| Operating Voltage | 3.3V – 5V DC |
|---|---|
| Outputs | Analog (AO), Digital (DO) |
| Comparator IC | LM393 |
| Sensitivity Adjustment | Onboard Potentiometer |
| Interface | 3-pin header (VCC, GND, Signal) |
📌 Applications
- Automatic plant watering systems
- Smart gardening projects
- Agricultural monitoring
- IoT-based irrigation systems
- Educational and DIY electronics projects

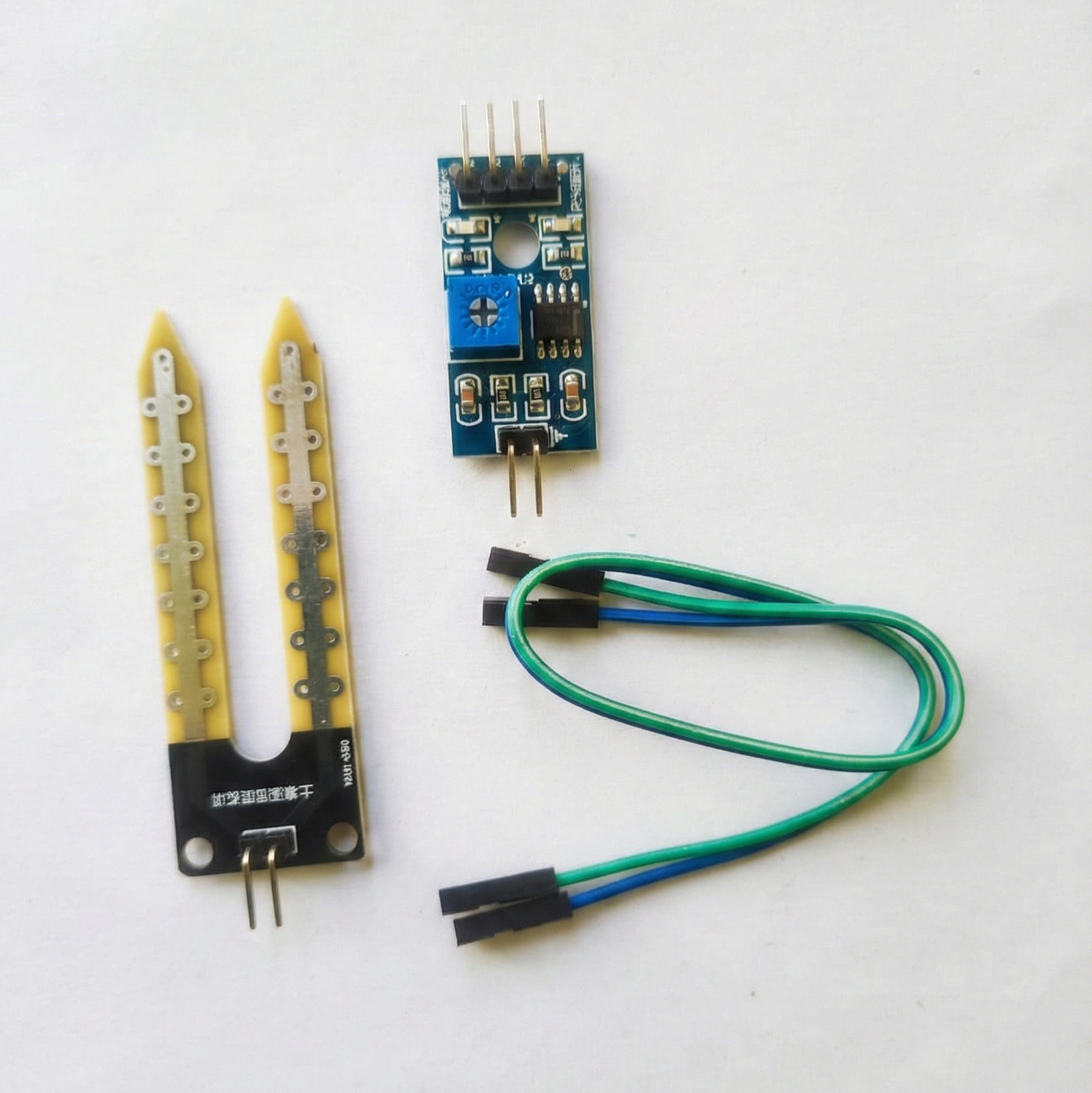

📦 Package Contents

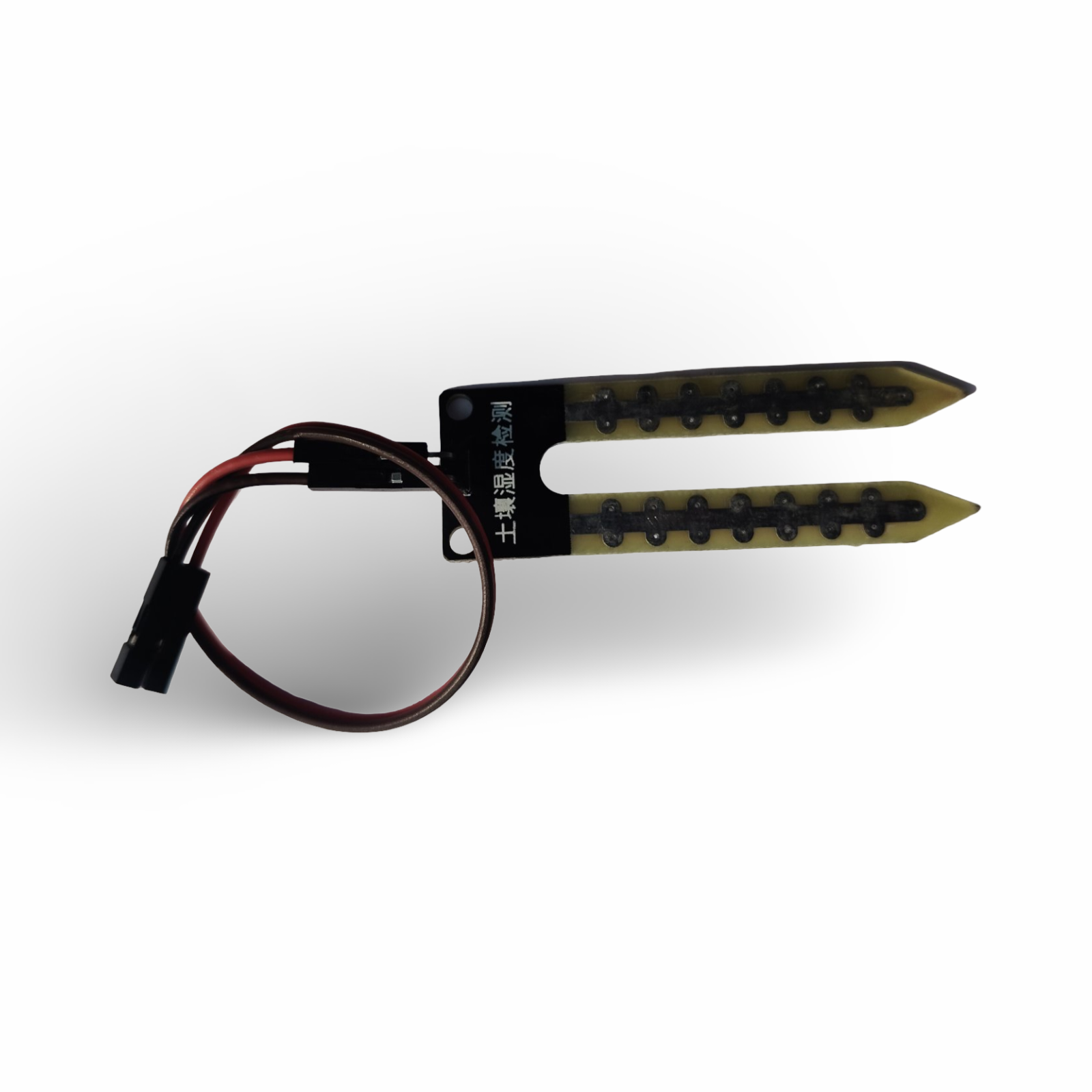

- 1 × Soil Moisture Sensor Probe
- 1 × Comparator Control Module
- 1 × Connecting Jumper Cable
