TTP223 Capacitive Touch Sensor Module – The Modern Switch
Upgrade your project with a touch of elegance. No moving parts, no mechanical wear—just smooth, reliable switching.

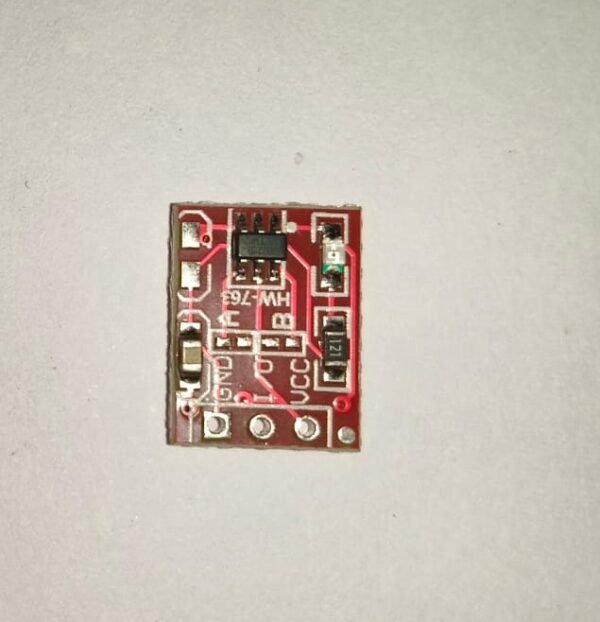

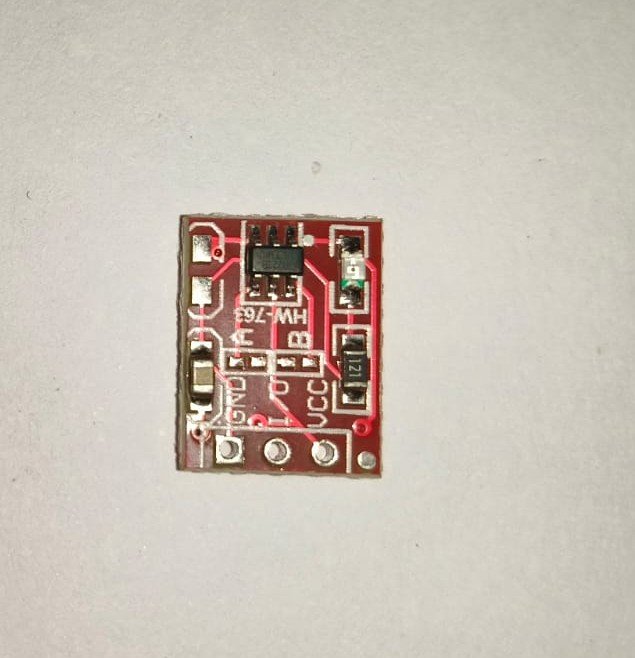

The TTP223 module is a single-channel touch sensor that acts just like a momentary push-button. It is incredibly small, low-power, and easy to integrate into any 2V to 5.5V system. Whether you are building a smart lamp, a hidden cabinet switch, or a custom control panel, this sensor provides a clean, professional feel to your user interface.
🚀 Key Features:

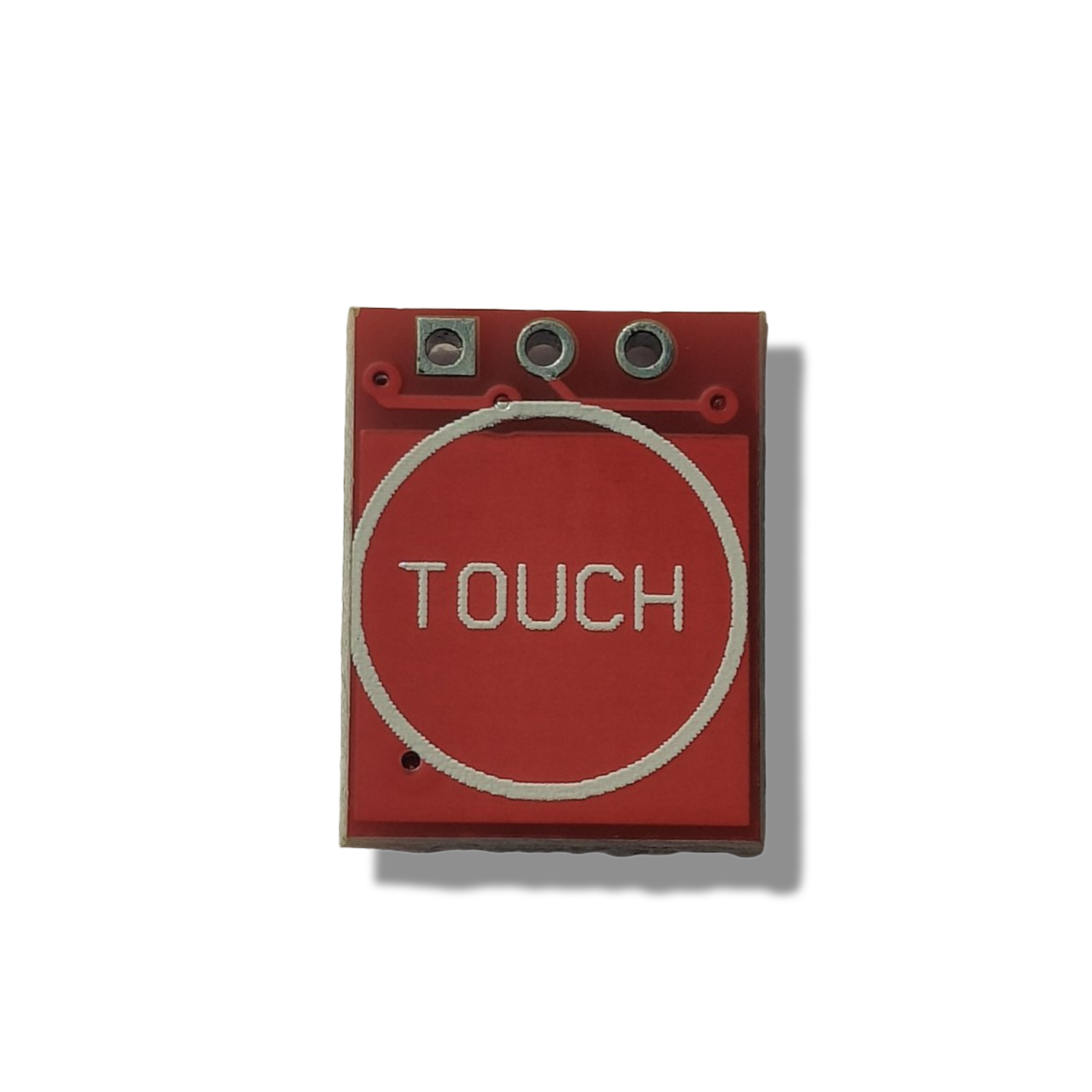

Touch-to-Switch: Replaces traditional buttons with a responsive, non-mechanical touch surface.
Hidden Integration: Can be mounted behind non-metallic surfaces (like acrylic or glass) to create invisible buttons.
On-board Indicator: Features a built-in LED that lights up when the sensor is triggered, providing instant visual feedback.

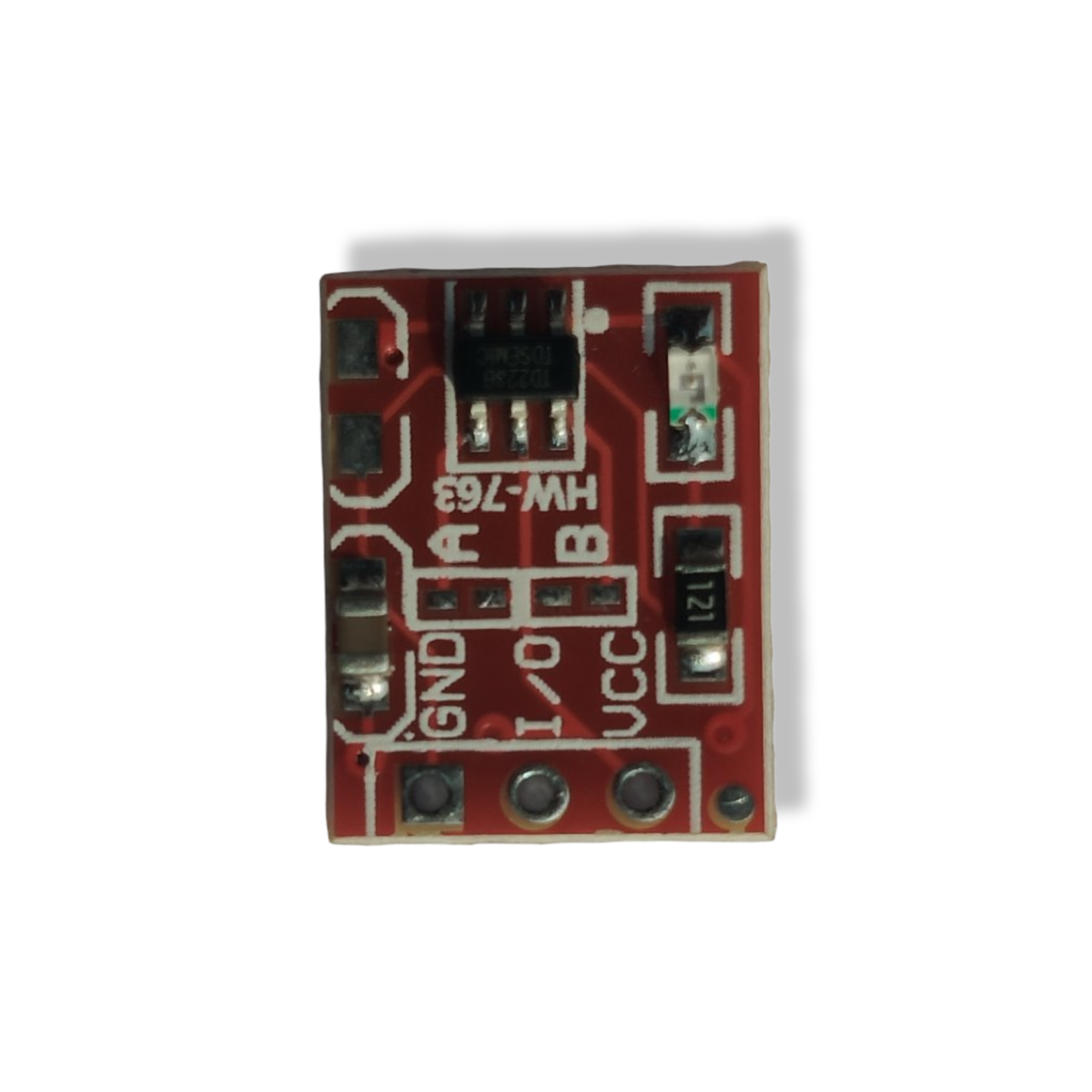

Customizable Modes: Small solder pads (A & B) on the back allow you to toggle between “Active High/Low” and “Momentary/Toggle” output.
Low Power Consumption: Ideal for battery-operated devices and IoT nodes.
🛠️ Pinout & Setup:
VCC: Connect to 2V – 5.5V.
GND: Connect to your system ground.
SIG: Connect to any digital input pin on your Arduino, ESP32, or Raspberry Pi.
📦 Applications:
Smart Home: Hidden light switches behind wooden panels or drywall.
Waterproof Panels: Sealed control buttons for outdoor or kitchen gadgets.
Interactive Art: Touch-sensitive installations and displays.
Wearables: Lightweight, low-profile buttons for clothing-integrated tech.
