Description

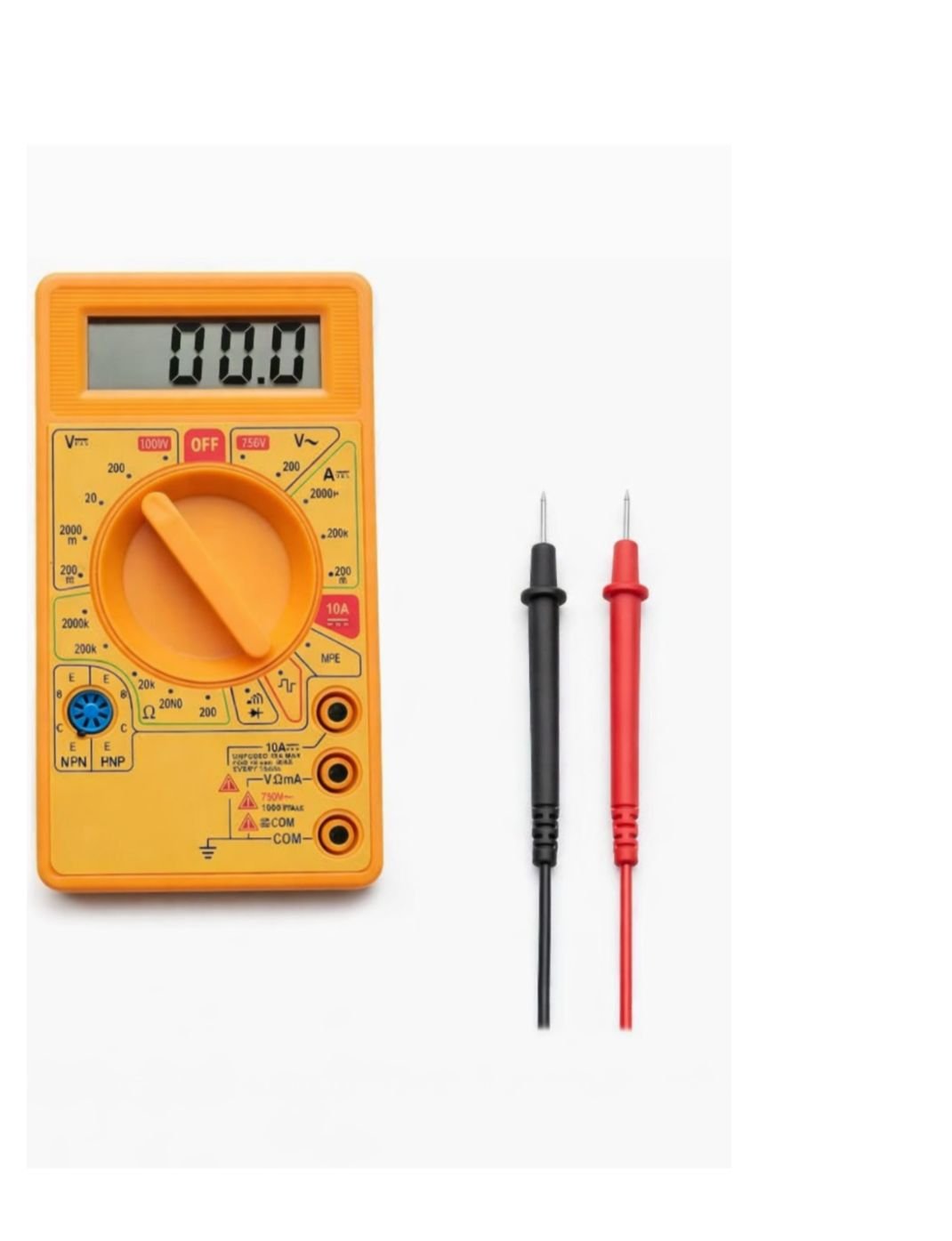

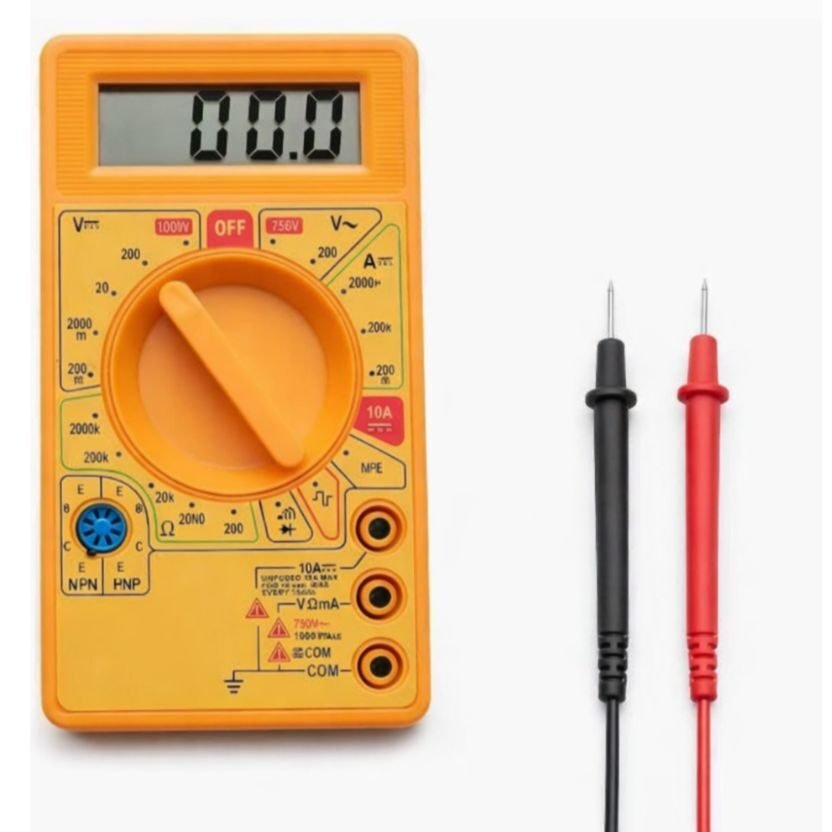

The DT830D Digital Multimeter is a versatile, pocket-sized diagnostic tool essential for students, hobbyists, and electronics technicians. This 3.5-digit LCD multimeter provides accurate readings for AC/DC voltage, DC current, and resistance, making it perfect for troubleshooting home appliances, DIY robotics, and circuit prototypes.
Precision Diagnostic Testing with the DT830D Multimeter
Whether you are a beginner learning electronics or a professional technician, the DT830D Digital Multimeter offers a reliable and affordable solution for your testing needs. This compact device combines the functions of a voltmeter, ammeter, and ohmmeter into one handheld unit. It is specifically designed for high visibility with a clear LCD screen and includes an audible continuity buzzer for fast circuit testing.
Key Features & Capabilities
- Multi-Function Measurement: Accurately tests DC voltage (up to 1000V), AC voltage (up to 750V), DC current (up to 10A), and resistance (up to 2MΩ).
- Integrated Component Testing: Features a dedicated socket for transistor hFE testing and a diode test function to verify semiconductor health.
- Safety First: Built with overload protection across all ranges and a low battery indicator to ensure consistent reading accuracy.
- Audible Continuity: The built-in buzzer provides instant feedback when checking for shorts or open circuits in wiring and PCB traces.
Technical Specifications
| Feature | Range / Details |
|---|---|
| DC Voltage | 200mV, 2000mV, 20V, 200V, 1000V |
| AC Voltage | 200V, 750V |
| DC Current | 200µA, 2000µA, 20mA, 200mA, 10A |
| Resistance | 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ |
| Display | 3.5 Digit LCD (1999 Max) |
| Power Source | 9V Battery (6F22) |
Practical Applications
The DT830D is a staple for VoltEleven makers and students in Shahjahanpur. Use it to check battery health in automotive systems, verify resistor values in breadboard projects, or diagnose faulty outlets in home maintenance. Its portable design allows it to fit easily into a pocket or toolkit for on-the-go diagnostics.
Package includes: 1 x DT830D Multimeter and 1 x Set of Test Lead Probes.
